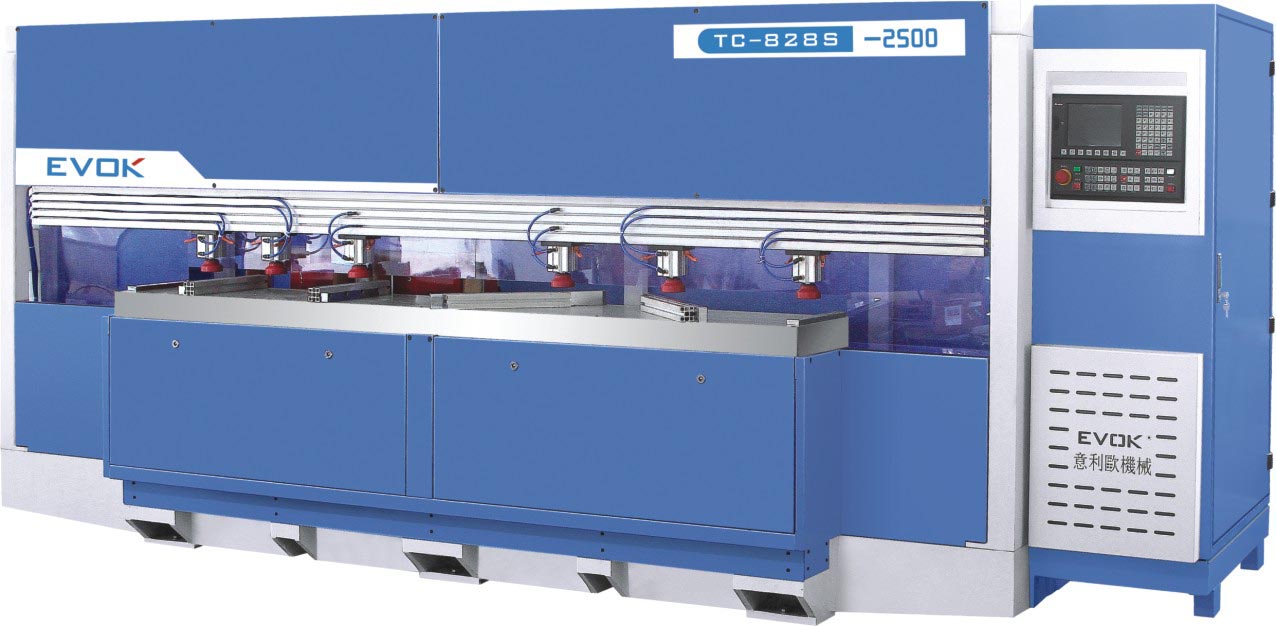

TC-828S 2500 多功能數控榫（sǔn）接機（jī）

Features:

1.4 spindles correspond to 4 cutter heads

2.Can process 45 degrees, 90 degrees, 135 degrees.

3.Max processing length is 2.5meter.

THE TECHNICAL PARAMETER

◎Power source : 380V/50Hz/3HP+N

◎Panel width for 45°: 40-120mm

◎Panel width for 135°: 40-150mm

◎Panel height: 20-70mm

◎Air pressure: 0.6-0.8Mpa

◎Total power: 25KW

◎Machine weight: 3000KG

◎Machine size: 4650*1450*1860mm
